Product Name : Long Sheet Movable Cutter
Product No :
CFM-02E
Range of Application
It is designed for cutting flexible 50 meters long block into thin sheet for quilting or laminating purpose.
Description

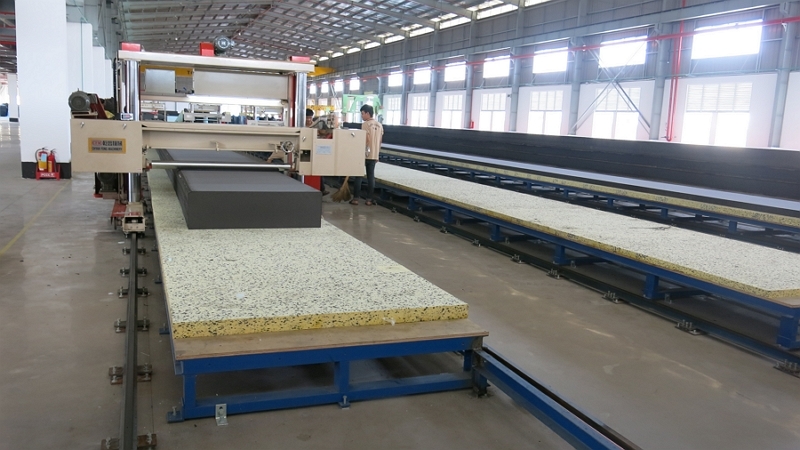

The Long Sheet Cutter CFM-02E is designed with a pressure roller and knife guide for cutting long sheet. The cut off foam slice needs of being taken away from working table after each cutting. The foam block is fixed on the table, the knife cut the foam block up and down.

Technical Data
1500mm
1200mm
50M
2~25mm
0-30M/min
Adjustable 0 ~ 5 degrees
32mm
L 6000x W 400 x H230cm
1800kgs
3HPx2, 1HPx1, 1/8HPx2
Option
  1. Increase cutting width to 2000mm
  2. Station steel table top with plywood
  3. Motorized winding-up unit
